Schäkel handelsüblich, galvanisch verzinkt
gerade oder geschweift
| Art. Nr. | Ngr. | D2 Bügel-Ø mm | D2 Bolzen-Ø mm | B1 i. Weite mm | H1 i. Höhe mm | Tragkraft kg gestempelt | Gewicht per 100 St. kg |
| gerade Ausführung | |||||||
| 30005 | 3/16" | 5 | 5 | 10 | 20 | 100 | 2 |
| 30006 | 1/4" | 6 | 6 | 12 | 24 | 125 | 3 |
| 30008 | 5/16" | 8 | 8 | 16 | 32 | 250 | 7 |
| 30010 | 3/8" | 10 | 10 | 20 | 40 | 300 | 13 |
| 30011 | 7/16" | 11 | 11 | 22 | 44 | 400 | 17 |
| 30012 | 1/2" | 12 | 12 | 24 | 48 | 500 | 24 |
| 30014 | 9/16" | 14 | 14 | 28 | 56 | 600 | 35 |
| 30016 | 5/8" | 16 | 16 | 32 | 64 | 800 | 50 |
| 30019 | 3/4" | 19 | 19 | 38 | 76 | 1100 | 80 |
| 30022 | 7/8" | 22 | 22 | 44 | 88 | 1500 | 130 |
| 30025 | 1" | 25 | 25 | 50 | 100 | 2100 | 200 |
| geschweifte Ausführung | |||||||
| 31005 | 3/16" | 5 | 5 | 10 | 20 | 100 | 2 |
| 31006 | 1/4" | 6 | 6 | 12 | 24 | 125 | 3 |
| 31008 | 5/16" | 8 | 8 | 16 | 32 | 250 | 7 |
| 31010 | 3/8" | 10 | 10 | 20 | 40 | 300 | 13 |
| 31011 | 7/16" | 11 | 11 | 22 | 44 | 400 | 17 |
| 31012 | 1/2" | 12 | 12 | 24 | 48 | 500 | 24 |
| 31014 | 9/16" | 14 | 14 | 28 | 56 | 600 | 35 |
| 31016 | 5/8" | 16 | 16 | 32 | 64 | 800 | 50 |
| 31019 | 3/4" | 19 | 19,0 | 38 | 76 | 1100 | 80 |
| 31022 | 7/8" | 22 | 22,0 | 44 | 88 | 1500 | 130 |
| 31025 | 1" | 25 | 25,0 | 50 | 100 | 2100 | 200 |

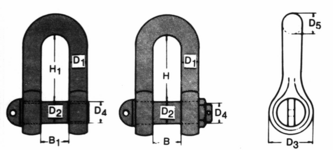

Schäkel ähnl. DIN 82101 Form A (mit Augbolzen), feuerverzinkt
| Art. Nr. | Ngr. | Nutzlast to | Bolzen mm (D2) | D1 mm | B1 mm | H1 mm | Gewicht per 100 St. kg |
| 32000 | 0.1 | 0.1 | 5 | 4 | 7 | 15,5 | 2,0 |
| 32001 | 0.16 | 0.16 | 6 | 5 | 8 | 18,0 | 2,0 |
| 32002 | 0.25 | 0.26 | 8 | 7 | 11 | 24,0 | 5,0 |
| 32004 | 0.4 | 0.4 | 10 | 8 | 14 | 30,0 | 9,0 |
| 32006 | 0.6 | 0.63 | 12 | 10 | 17 | 36,0 | 17,0 |
| 32010 | 1,0 | 1,0 | 16 | 13 | 21 | 49,0 | 36,0 |
| 32016 | 1.6 | 1.6 | 20 | 17 | 27 | 61,0 | 75,0 |
| 32020 | 2,0 | 2,0 | 22 | 19 | 30 | 67,0 | 100,0 |
| 32025 | 2,5 | 2.5 | 24 | 21 | 33 | 73,0 | 132,0 |
| 32030 | 3,0 | 3.15 | 27 | 24 | 38 | 83,5 | 185,0 |
| 32040 | 4,0 | 4,0 | 30 | 27 | 42 | 91,0 | 250,0 |
| 32050 | 5,0 | 5,0 | 36 | 30 | 47 | 111,0 | 400,0 |
| 32060 | 6,0 | 6.3 | 39 | 34 | 53 | 119,0 | 540,0 |
| 32080 | 8,0 | 8,0 | 45 | 38 | 60 | 139,5 | 790,0 |
| 32100 | 10,0 | 10,0 | 48 | 42 | 66 | 147,0 | 1000,0 |
| 32120 | 12,0 | 12,0 | 52 | 47 | 73 | 158,0 | 1350,0 |
| 32160 | 16,0 | 16,0 | 60 | 52 | 81 | 185,0 | 1920,0 |
| 32200 | 20,0 | 20,0 | 68 | 58 | 90 | 211,0 | 2800,0 |
| 32250 | 25,0 | 25,0 | 72 | 63 | 100 | 221,0 | 3400,0 |
Hochfeste Schäkel gerade Form US Fed. Spec. RR-C-271 feuerverzinkt
Schäkel entsprechen der EN 13889
Bolzen dunkelgrau beschichtet
Sicherheitsfaktor 6 Mindestbruchlast = 6 x Nutzlast
| Art. Nr. | Art. Nr. | Nutzlast | Bügel | Bügel | Bolzen | Bolzen | i. Weite | i. Höhe | Gewicht per 100 St. kg |
| Augb. | Mutter+ Splint | to | Zoll | mm | Zoll (D2) | mm (D2) | mm (B1) | mm (H1) | Augb./M+Spl. |
| 34003 | 36003 | 0,33 | 3/16" | 5 | 1/4" | 6 | 10 | 19 | 2 / 3 |
| 34005 | 36005 | 0,50 | 1/4" | 6 | 5/16" | 8 | 12 | 22 | 6 / 7 |
| 34007 | 36007 | 0,75 | 5/16" | 8 | 3/8" | 10 | 13 | 26 | 8 / 9 |
| 34010 | 36010 | 1,00 | 3/8" | 10 | 7/16" | 11 | 16 | 31 | 13 / 15 |
| 34015 | 36015 | 1,50 | 7/16" | 11 | 1/2" | 13 | 18 | 36 | 19 / 22 |
| 34020 | 36020 | 2,00 | 1/2" | 13 | 5/8" | 16 | 21 | 41 | 31 / 34 |
| 34032 | 36032 | 3,25 | 5/8" | 16 | 3/4" | 19 | 27 | 51 | 55 / 70 |
| 34047 | 36047 | 4,75 | 3/4" | 19 | 7/8" | 22 | 32 | 59 | 96 / 118 |
| 34065 | 36065 | 6,50 | 7/8" | 22 | 1" | 25 | 36 | 71 | 140 / 164 |
| 34085 | 36085 | 8,50 | 1" | 25 | 1.1/8" | 28 | 43 | 81 | 203 / 241 |
| 34095 | 36095 | 9,50 | 1.1/8" | 28 | 1.1/4" | 32 | 46 | 90 | 297 / 327 |
| 34120 | 36120 | 12,0 | 1.1/4" | 32 | 1.3/8" | 35 | 51 | 94 | 401 / 459 |
| 34135 | 36135 | 13,5 | 1.3/8" | 35 | 1.1/2" | 38 | 57 | 113 | 540 / 600 |
| 34170 | 36170 | 17,0 | 1.1/2" | 38 | 1.5/8" | 42 | 60 | 124 | 729 / 833 |
| 34250 | 36250 | 25,0 | 1.3/4" | 45 | 2" | 50 | 73 | 146 | 1125 / 1283 |
| 34350 | 36350 | 35,0 | 2" | 50 | 2.1/4" | 57 | 83 | 171 | 1620 / 1850 |
| 34425 | 36425 | 42,5 | 2.1/4" | 57 | 2.3/8" | 65 | 95 | 190 | 2420 / 2600 |
| 34550 | 36550 | 55,0 | 2.1/2" | 65 | 2.3/4" | 70 | 105 | 203 | 3780 / 4105 |
| ------- | 36850 | 85,0 | 3" | 75 | 3.1/4" | 84 | 125 | 229 | ----- / 6220 |
Hochfeste Schäkel geschweifte Form US Fed. Spec. RR-C-271 feuerverzinkt
Schäkel entsprechen der EN 13889
Schäkel entsprechen der EN 13889
Sicherheitsfaktor 6 Mindestbruchlast = 6 x Nutzlast
| Art. Nr. | Art. Nr. | Nutz-last | Bügel | Bügel | Bolzen | Bolzen | i. Weite | i. Höhe | Gewicht per 100 St. kg |
| Augb. | Mutter+ Splint | to | Zoll | mm | Zoll (D2) | mm (D2) | mm (B1) | mm (H2) | Augb./M+Spl. |
| 33003 | 35003 | 0,33 | 3/16" | 5 | 1/4" | 6 | 10 | 19 | 4 / 5 |
| 33005 | 35005 | 0,50 | 1/4" | 6 | 5/16" | 8 | 12 | 28 | 5 / 7 |
| 33007 | 35007 | 0,75 | 5/16" | 8 | 3/8" | 10 | 13 | 31 | 8 / 10 |
| 33010 | 35010 | 1,00 | 3/8" | 10 | 7/16" | 11 | 16 | 36 | 14 / 15 |
| 33015 | 35015 | 1,50 | 7/16" | 11 | 1/2" | 13 | 18 | 42 | 22 / 26 |
| 33020 | 35020 | 2,00 | 1/2" | 13 | 5/8" | 16 | 21 | 48 | 33 / 37 |
| 33032 | 35032 | 3,25 | 5/8" | 16 | 3/4" | 19 | 27 | 60 | 65 / 71 |
| 33047 | 35047 | 4,75 | 3/4" | 19 | 7/8" | 22 | 32 | 71 | 97 / 127 |
| 33065 | 35065 | 6,50 | 7/8" | 22 | 1" | 25 | 36 | 83 | 152 / 178 |
| 33085 | 35085 | 8,50 | 1" | 25 | 1.1/8" | 28 | 43 | 95 | 239 / 252 |
| 33095 | 35095 | 9,50 | 1.1/8" | 28 | 1.1/4" | 32 | 46 | 108 | 315 / 353 |
| 33120 | 35120 | 12,0 | 1.1/4" | 32 | 1.3/8" | 35 | 51 | 115 | 432 / 504 |
| 33135 | 35135 | 13,5 | 1.3/8" | 35 | 1.1/2" | 38 | 57 | 133 | 567 / 684 |
| 33170 | 35170 | 17,0 | 1.1/2" | 38 | 1.5/8" | 42 | 60 | 146 | 779 / 878 |
| 33250 | 35250 | 25,0 | 1.3/4" | 45 | 2" | 50 | 73 | 178 | 1251 / 1409 |
| 33350 | 35350 | 35,0 | 2" | 50 | 2.1/4" | 57 | 83 | 197 | 1850 / 2084 |
| 33425 | 35425 | 42,5 | 2.1/4" | 57 | 2.3/8" | 65 | 95 | 220 | 2590 / 2750 |
| 33550 | 35550 | 55,0 | 2.1/2" | 65 | 2.3/4" | 70 | 105 | 260 | 3785 / 4105 |
| --- | 35850 | 85,0 | 3" | 75 | 3.1/4" | 84 | 125 | 329 | ---- / 6220 |
| --- | 35912 | 120,0 | 3.3/4" | 95 | 3.3/4" | 95 | 135 | 380 | ---- / 11000 |
| --- | 35915 | 150,0 | 4" | 105 | 4.1/4" | 108 | 140 | 400 | --- / 16000 |
Maße und Gewichtangaben annähernd, Änderungen vorbehalten
