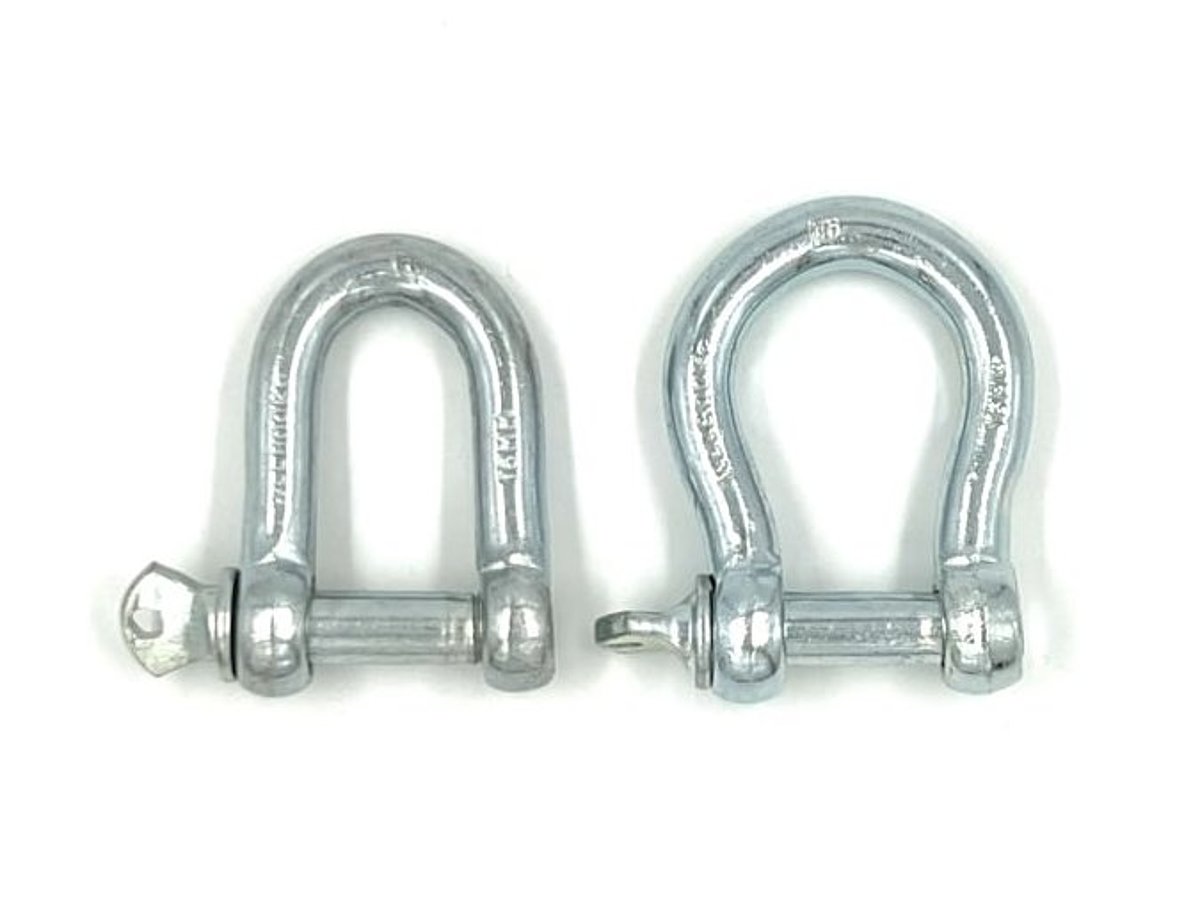

Commercial Shackles, electro galvanized
DEE-Type or BOW-Type

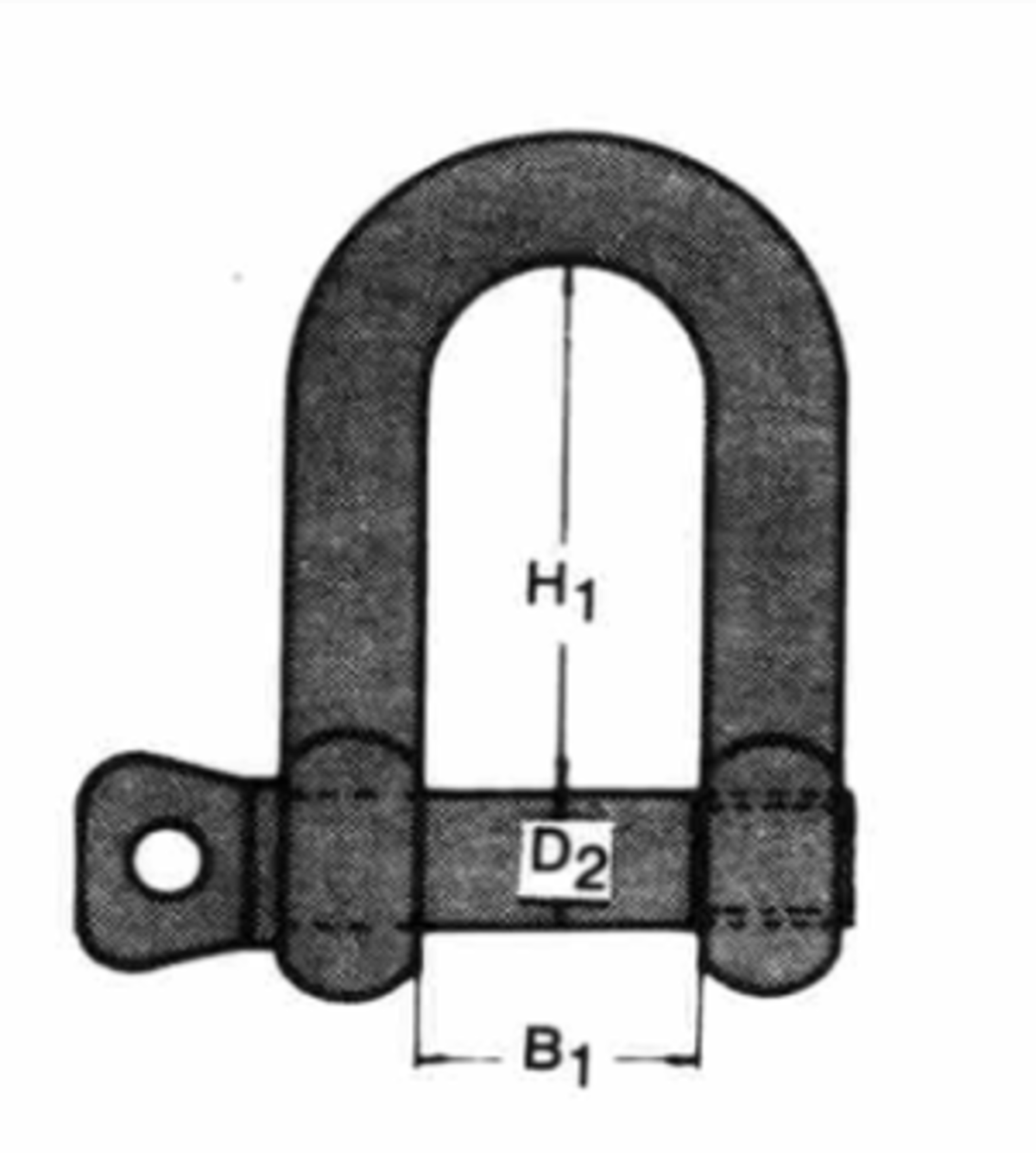

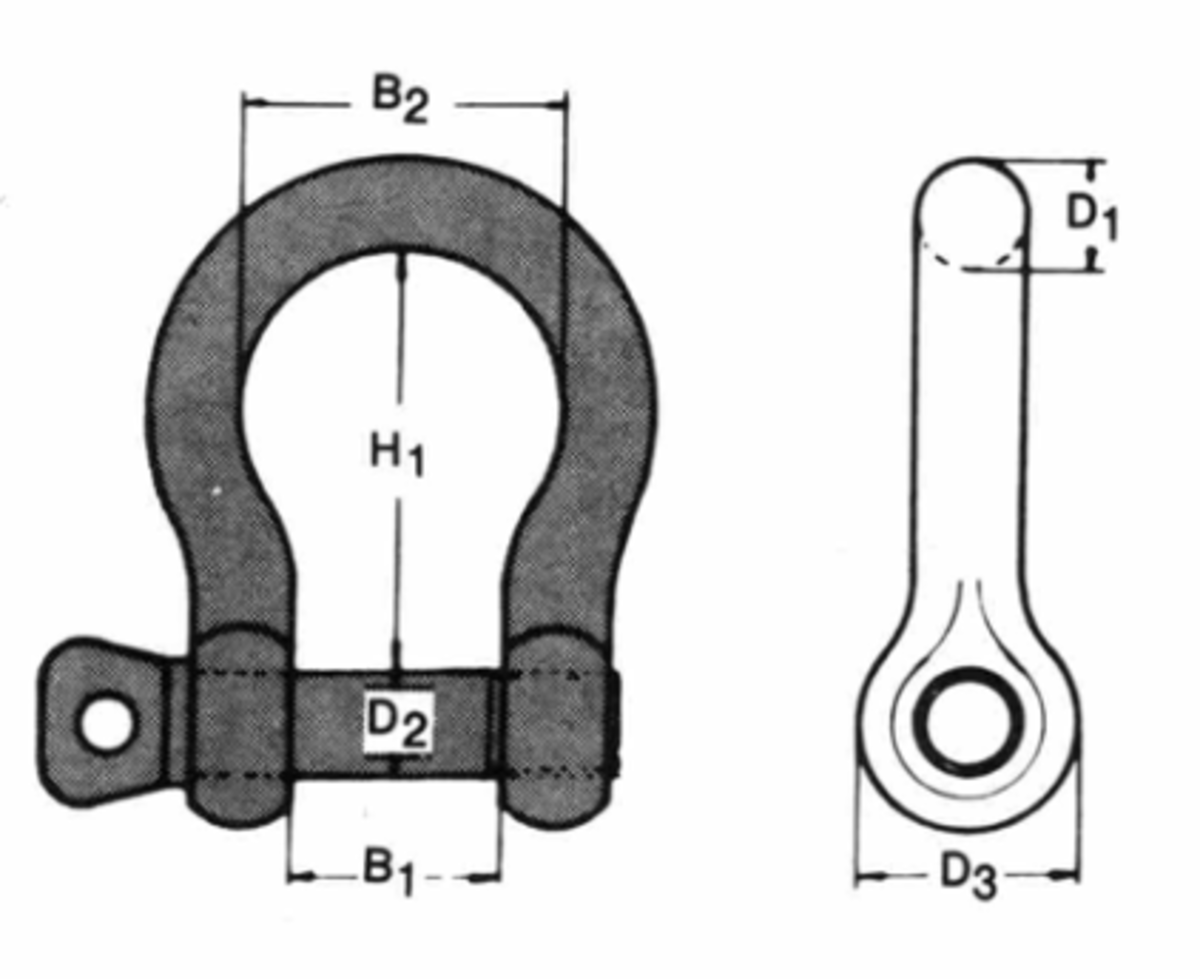

| Art. No. | Size | D2 Body-Ø mm | D2 Bolt-Ø mm | B1 inside width mm | H1 inside length mm | WLL kg marked | Weight per 100 pcs. kg |
| DEE-Type | |||||||
| 30005 | 3/16" | 5 | 5 | 10 | 20 | 100 | 2 |
| 30006 | 1/4" | 6 | 6 | 12 | 24 | 125 | 3 |
| 30008 | 5/16" | 8 | 8 | 16 | 32 | 250 | 7 |
| 30010 | 3/8" | 10 | 10 | 20 | 40 | 300 | 13 |
| 30011 | 7/16" | 11 | 11 | 22 | 44 | 400 | 17 |
| 30012 | 1/2" | 12 | 12 | 24 | 48 | 500 | 24 |
| 30014 | 9/16" | 14 | 14 | 28 | 56 | 600 | 35 |
| 30016 | 5/8" | 16 | 16 | 32 | 64 | 800 | 50 |
| 30019 | 3/4" | 19 | 19 | 38 | 76 | 1100 | 80 |
| 30022 | 7/8" | 22 | 22 | 44 | 88 | 1500 | 130 |
| 30025 | 1" | 25 | 25 | 50 | 100 | 2100 | 200 |
| BOW-Type | |||||||
| 31005 | 3/16" | 5 | 5 | 10 | 20 | 100 | 2 |
| 31006 | 1/4" | 6 | 6 | 12 | 24 | 125 | 3 |
| 31008 | 5/16" | 8 | 8 | 16 | 32 | 250 | 7 |
| 31010 | 3/8" | 10 | 10 | 20 | 40 | 300 | 13 |
| 31011 | 7/16" | 11 | 11 | 22 | 44 | 400 | 17 |
| 31012 | 1/2" | 12 | 12 | 24 | 48 | 500 | 24 |
| 31014 | 9/16" | 14 | 14 | 28 | 56 | 600 | 35 |
| 31016 | 5/8" | 16 | 16 | 32 | 64 | 800 | 50 |
| 31019 | 3/4" | 19 | 19.0 | 38 | 76 | 1100 | 80 |
| 31022 | 7/8" | 22 | 22.0 | 44 | 88 | 1500 | 130 |
| 31025 | 1" | 25 | 25.0 | 50 | 100 | 2100 | 200 |
Shackles sim. to DIN 82101 Form A (with screw bolt)
| Art. No. | Size | WLL to | Bolt mm (D2) | D1 mm | B1 mm | H1 mm | Weight per 100 pcs. kg |
| 32000 | 0.1 | 0.1 | 5 | 4 | 7 | 15.5 | 2.0 |
| 32001 | 0.16 | 0.16 | 6 | 5 | 8 | 18.0 | 2.0 |
| 32002 | 0.25 | 0.26 | 8 | 7 | 11 | 24.0 | 5.0 |
| 32004 | 0.4 | 0.4 | 10 | 8 | 14 | 30.0 | 9.0 |
| 32006 | 0.6 | 0.63 | 12 | 10 | 17 | 36.0 | 17.0 |
| 32010 | 1.0 | 1.0 | 16 | 13 | 21 | 49.0 | 36.0 |
| 32016 | 1.6 | 1.6 | 20 | 17 | 27 | 61.0 | 75.0 |
| 32020 | 2.0 | 2.0 | 22 | 19 | 30 | 67.0 | 100.0 |
| 32025 | 2.5 | 2.5 | 24 | 21 | 33 | 73.0 | 132.0 |
| 32030 | 3.0 | 3.15 | 27 | 24 | 38 | 83.5 | 185.0 |
| 32040 | 4.0 | 4.0 | 30 | 27 | 42 | 91.0 | 250.0 |
| 32050 | 5.0 | 5.0 | 36 | 30 | 47 | 111.0 | 400.0 |
| 32060 | 6.0 | 6.3 | 39 | 34 | 53 | 119.0 | 540.0 |
| 32080 | 8.0 | 8.0 | 45 | 38 | 60 | 139.5 | 790.0 |
| 32100 | 10.0 | 10.0 | 48 | 42 | 66 | 147.0 | 1000.0 |
| 32120 | 12.0 | 12.0 | 52 | 47 | 73 | 158.0 | 1350.0 |
| 32160 | 16.0 | 16.0 | 60 | 52 | 81 | 185.0 | 1920.0 |
| 32200 | 20.0 | 20.0 | 68 | 58 | 90 | 211.0 | 2800.0 |
| 32250 | 25.0 | 25.0 | 72 | 63 | 100 | 221.0 | 3400.0 |

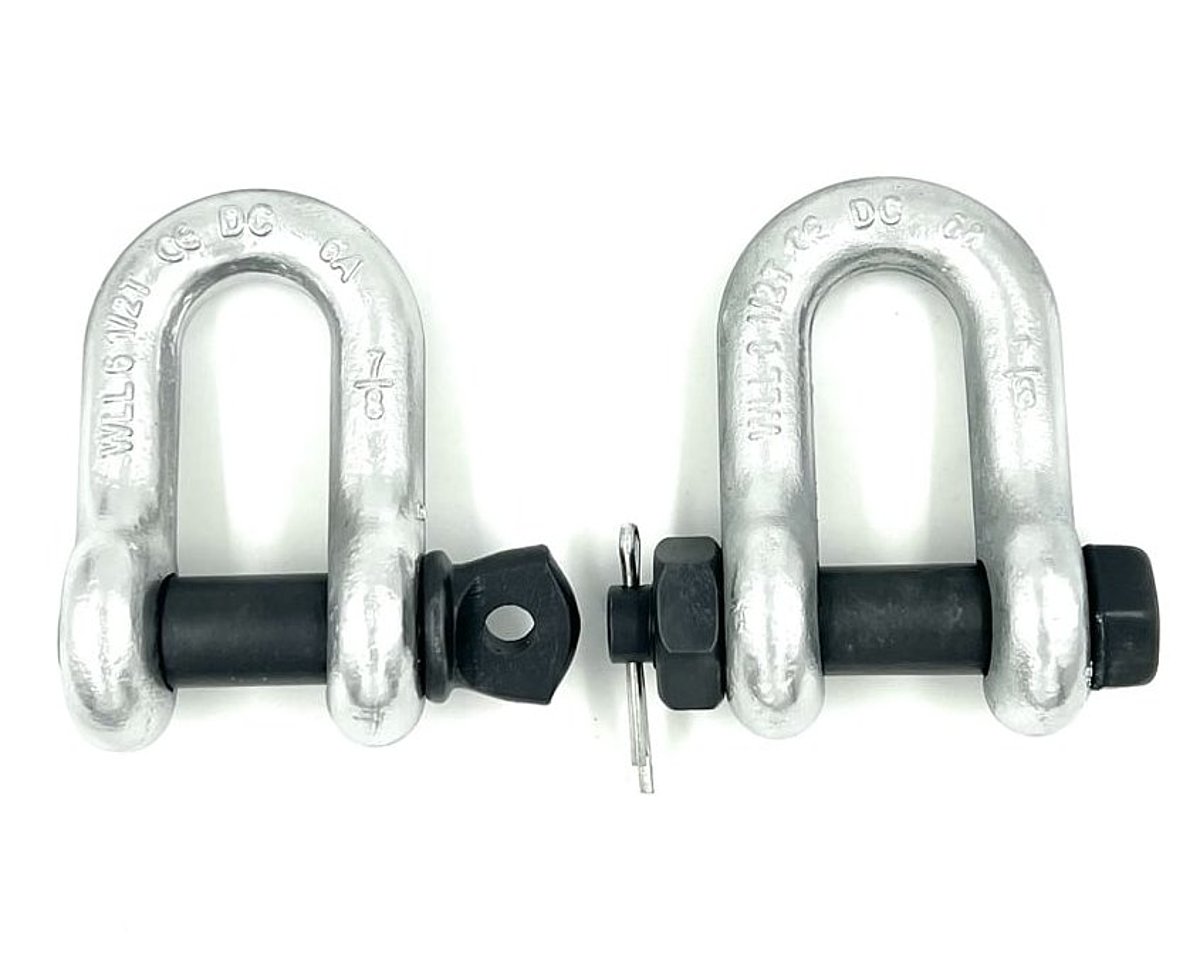

High Tensile Shackles DEE-Type Form US Fed. Spec. RR-C-271
hot dipped galvanized, sim. to EN 13889
Bolts darkgrey coated
Safety-Factor 6 MBL = 6 x WLL
| Art. No. | Art. No. | WLL | Body | Body | Bolt | Bolt | inside width | inside length | Weight per 100 pcs. kg |
| screw bolt | safety bolt | to | Inch | mm | Inch (D2) | mm (D2) | mm (B1) | mm (H1) | screw / safety |
| 34003 | 36003 | 0.33 | 3/16" | 5 | 1/4" | 6 | 10 | 19 | 2 / 3 |
| 34005 | 36005 | 0.50 | 1/4" | 6 | 5/16" | 8 | 12 | 22 | 6 / 7 |
| 34007 | 36007 | 0.75 | 5/16" | 8 | 3/8" | 10 | 13 | 26 | 8 / 9 |
| 34010 | 36010 | 1.00 | 3/8" | 10 | 7/16" | 11 | 16 | 31 | 13 / 15 |
| 34015 | 36015 | 1.50 | 7/16" | 11 | 1/2" | 13 | 18 | 36 | 19 / 22 |
| 34020 | 36020 | 2.00 | 1/2" | 13 | 5/8" | 16 | 21 | 41 | 31 / 34 |
| 34032 | 36032 | 3.25 | 5/8" | 16 | 3/4" | 19 | 27 | 51 | 55 / 70 |
| 34047 | 36047 | 4.75 | 3/4" | 19 | 7/8" | 22 | 32 | 59 | 96 / 118 |
| 34065 | 36065 | 6.50 | 7/8" | 22 | 1" | 25 | 36 | 71 | 140 / 164 |
| 34085 | 36085 | 8.50 | 1" | 25 | 1.1/8" | 28 | 43 | 81 | 203 / 241 |
| 34095 | 36095 | 9.50 | 1.1/8" | 28 | 1.1/4" | 32 | 46 | 90 | 297 / 327 |
| 34120 | 36120 | 12.0 | 1.1/4" | 32 | 1.3/8" | 35 | 51 | 94 | 401 / 459 |
| 34135 | 36135 | 13.5 | 1.3/8" | 35 | 1.1/2" | 38 | 57 | 113 | 540 / 600 |
| 34170 | 36170 | 17.0 | 1.1/2" | 38 | 1.5/8" | 42 | 60 | 124 | 729 / 833 |
| 34250 | 36250 | 25.0 | 1.3/4" | 45 | 2" | 50 | 73 | 146 | 1125 / 1283 |
| 34350 | 36350 | 35.0 | 2" | 50 | 2.1/4" | 57 | 83 | 171 | 1620 / 1850 |
| 34425 | 36425 | 42.5 | 2.1/4" | 57 | 2.3/8" | 65 | 95 | 190 | 2420 / 2600 |
| 34550 | 36550 | 55.0 | 2.1/2" | 65 | 2.3/4" | 70 | 105 | 203 | 3780 / 4105 |
| ------- | 36850 | 85.0 | 3" | 75 | 3.1/4" | 84 | 125 | 229 | ----- / 6220 |

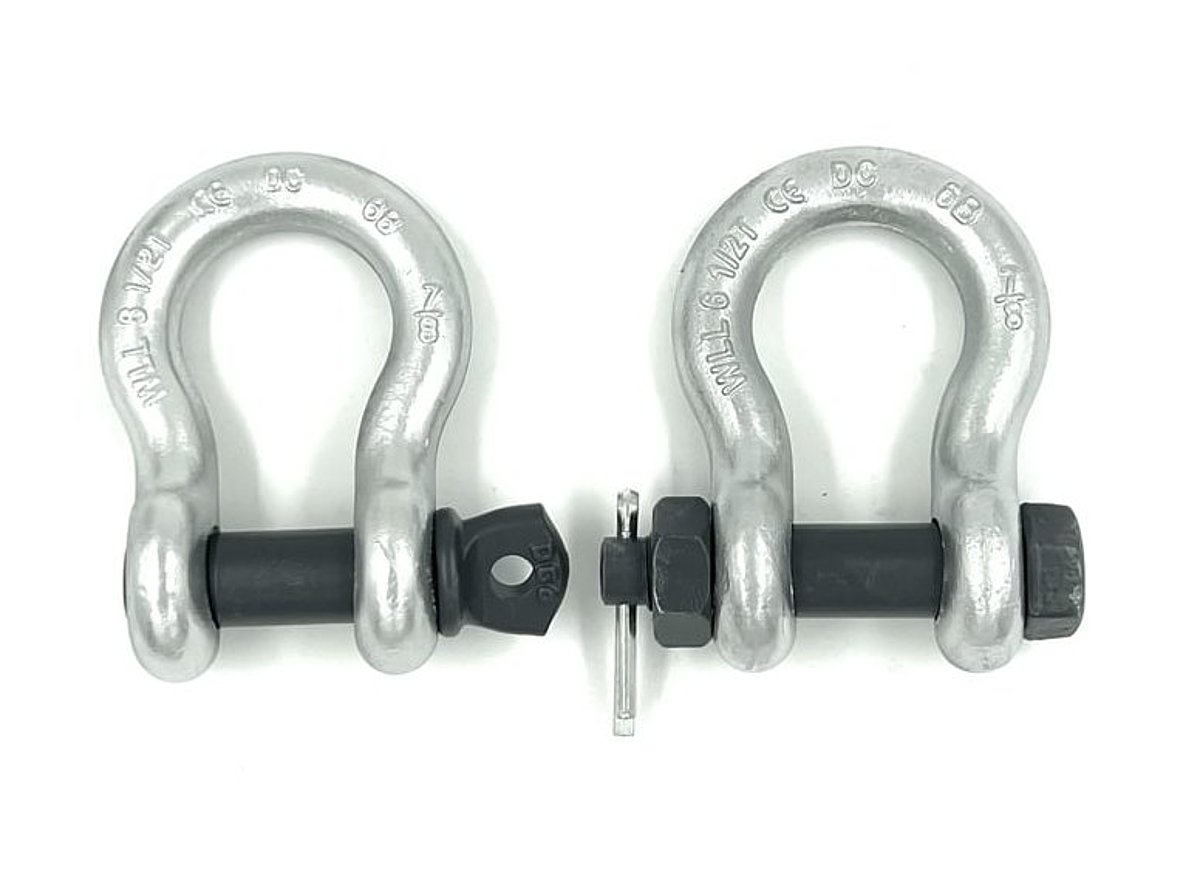

High Tensile Shackles BOW-Type Form US Fed. Spec. RR-C-271
hot dipped galvanized, sim. to EN 13889
Bolts darkgrey coated
Safety-Factor 6 MBL = 6 x WLL
| Art. No. | Art. No. | WLL | Body | Body | Bolt | Bolt | inside width | inside length | Weight per 100 pcs. kg |
| screw bolt | safety bolt | to | Inch | mm | Inch (D2) | mm (D2) | mm (B1) | mm (H1) | screw / safety |
| 33003 | 35003 | 0.33 | 3/16" | 5 | 1/4" | 6 | 10 | 19 | 4 / 5 |
| 33005 | 35005 | 0.50 | 1/4" | 6 | 5/16" | 8 | 12 | 28 | 5 / 7 |
| 33007 | 35007 | 0.75 | 5/16" | 8 | 3/8" | 10 | 13 | 31 | 8 / 10 |
| 33010 | 35010 | 1.00 | 3/8" | 10 | 7/16" | 11 | 16 | 36 | 14 / 15 |
| 33015 | 35015 | 1.50 | 7/16" | 11 | 1/2" | 13 | 18 | 42 | 22 / 26 |
| 33020 | 35020 | 2.00 | 1/2" | 13 | 5/8" | 16 | 21 | 48 | 33 / 37 |
| 33032 | 35032 | 3.25 | 5/8" | 16 | 3/4" | 19 | 27 | 60 | 65 / 71 |
| 33047 | 35047 | 4.75 | 3/4" | 19 | 7/8" | 22 | 32 | 71 | 97 / 127 |
| 33065 | 35065 | 6.50 | 7/8" | 22 | 1" | 25 | 36 | 83 | 152 / 178 |
| 33085 | 35085 | 8.50 | 1" | 25 | 1.1/8" | 28 | 43 | 95 | 239 / 252 |
| 33095 | 35095 | 9.50 | 1.1/8" | 28 | 1.1/4" | 32 | 46 | 108 | 315 / 353 |
| 33120 | 35120 | 12.0 | 1.1/4" | 32 | 1.3/8" | 35 | 51 | 115 | 432 / 504 |
| 33135 | 35135 | 13.5 | 1.3/8" | 35 | 1.1/2" | 38 | 57 | 133 | 567 / 684 |
| 33170 | 35170 | 17.0 | 1.1/2" | 38 | 1.5/8" | 42 | 60 | 146 | 779 / 878 |
| 33250 | 35250 | 25.0 | 1.3/4" | 45 | 2" | 50 | 73 | 178 | 1251 / 1409 |
| 33350 | 35350 | 35.0 | 2" | 50 | 2.1/4" | 57 | 83 | 197 | 1850 / 2084 |
| 33425 | 35425 | 42.5 | 2.1/4" | 57 | 2.3/8" | 65 | 95 | 220 | 2590 / 2750 |
| 33550 | 35550 | 55.0 | 2.1/2" | 65 | 2.3/4" | 70 | 105 | 260 | 3785 / 4105 |
| --- | 35850 | 85.0 | 3" | 75 | 3.1/4" | 84 | 125 | 329 | ---- / 6220 |
| --- | 35912 | 120.0 | 3.3/4" | 95 | 3.3/4" | 95 | 135 | 380 | ---- / 11000 |
| --- | 35915 | 150.0 | 4" | 105 | 4.1/4" | 108 | 140 | 400 | --- / 16000 |
Sizes and weights can be changed! We reserve the right to change technical details!
