Swing Articles

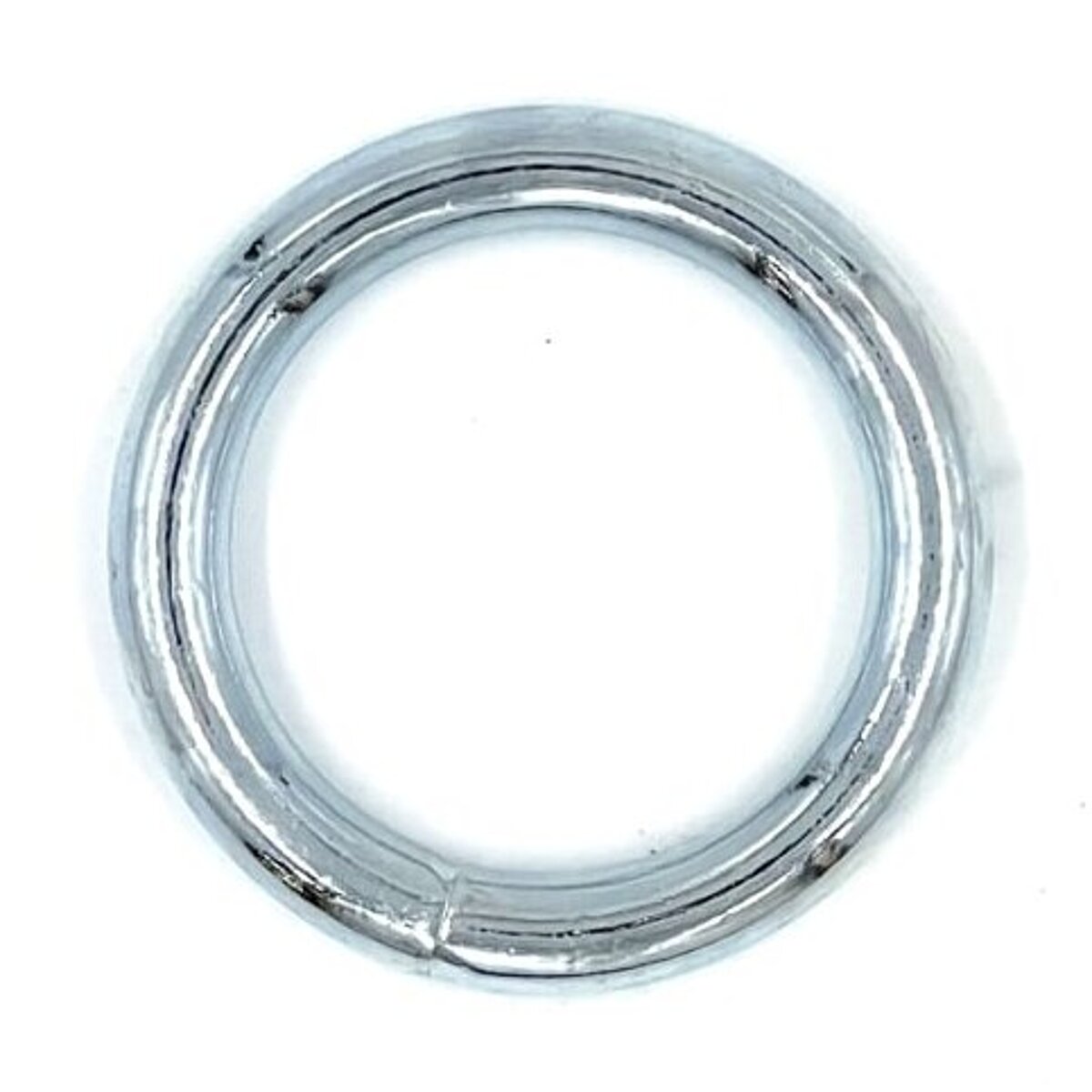

Round Rings welded

Runde Ringe Geschweißt

Material C15 electro galvanized

Art.-No. Material mm inside width mm outside width mm Weight per 100 pcs kg
60325 3 25 31 0.8
60425 4 25 33 0.9
60525 5 25 35 1.0
60530 5 30 40 1.2
60540 5 40 50 1.5
60550 5 50 60 1.8
60630 6 30 42 2.9
60640 6 40 52 3.4
60650 6 50 62 3.7
60660 6 60 72 3.9
60735 7 35 49 4.0
60740 7 40 54 4.1
60750 7 50 64 5.0
60840 8 40 56 6.3
60845 8 45 61 8.2
60884 8 84 100 9.8
60940 9 40 58 8.5
60945 9 45 63 9.6
60950 9 50 68 9.8
61030 10 30 50 10.0
61050 10 50 70 12.0
61060 10 60 80 14.1
61085 10 85 105 15.5
61250 12 50 74 17.4
61260 12 60 84 22.1

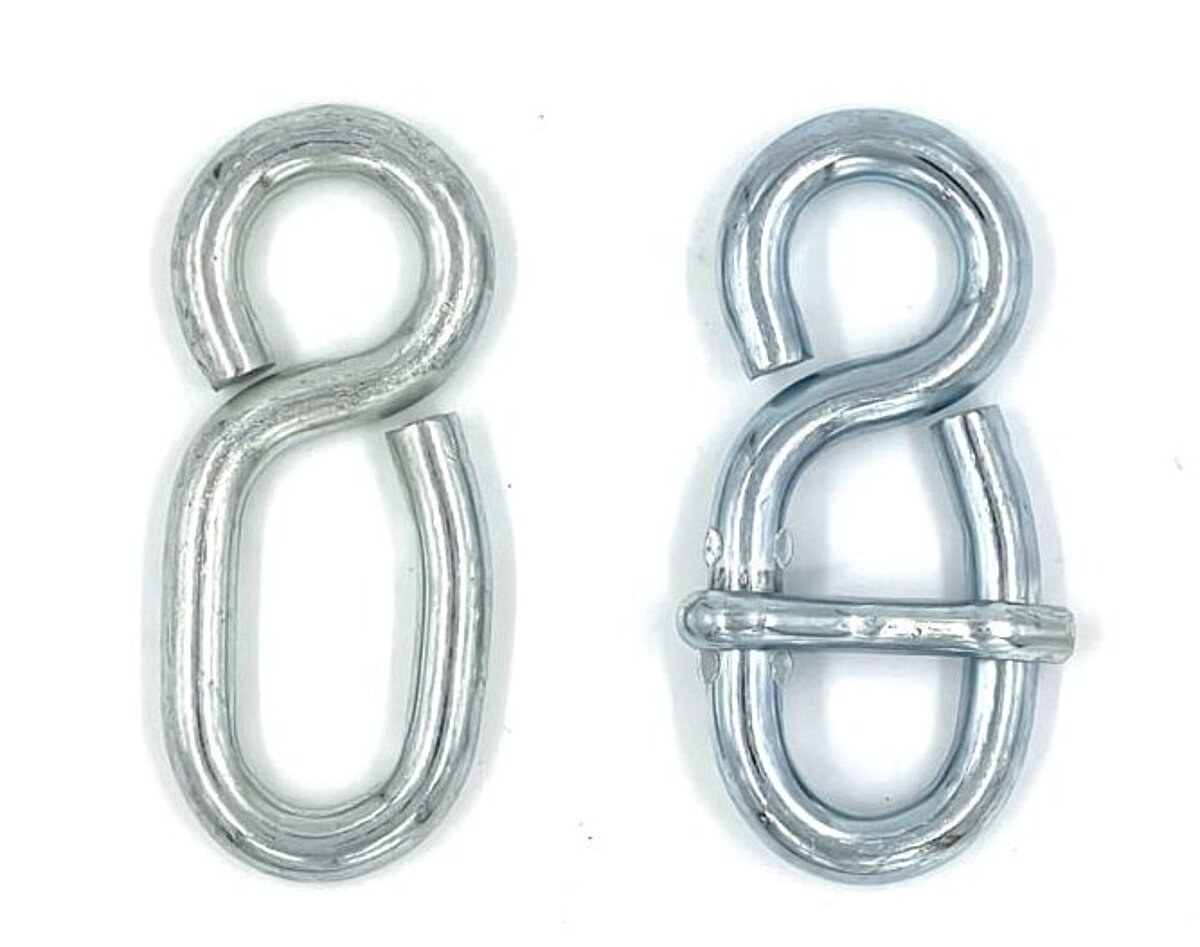

Rope Shortenings, electro galvanized

with tongue or without tongue

Stellachten

We also deliver these articles in various sizes and acc. to customer wishes.

Art.-No. Material-Ø mm Total length mm Weight per 100 pcs kg
without tongue
62670 6 70 5.0
62775 7 75 6.0
62880 8 80 8.0
62990 9 90 11.0
with tongue
63660 6 60 3.7
63670 6 70 4.5
63775 7 75 6.4
63880 8 80 8.5
63990 9 90 11.2
63998 10 100 17.4
63999 10 100 welded 18.2

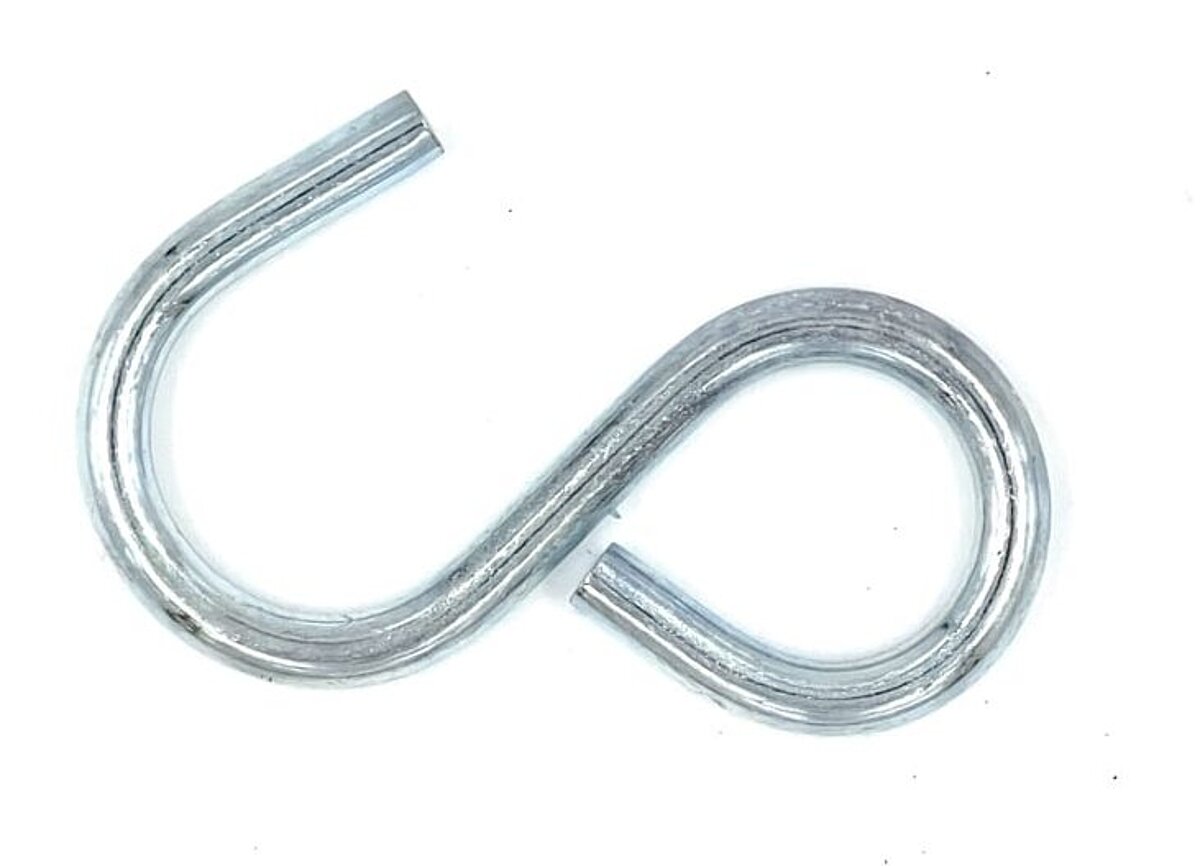

Special S-Hooks, Material C15, electro galvanized

Drahttrapezösen
Art.-No. Material-Ø mm Total length mm Weight per 100 pcs kg
64008 8 100 9.0

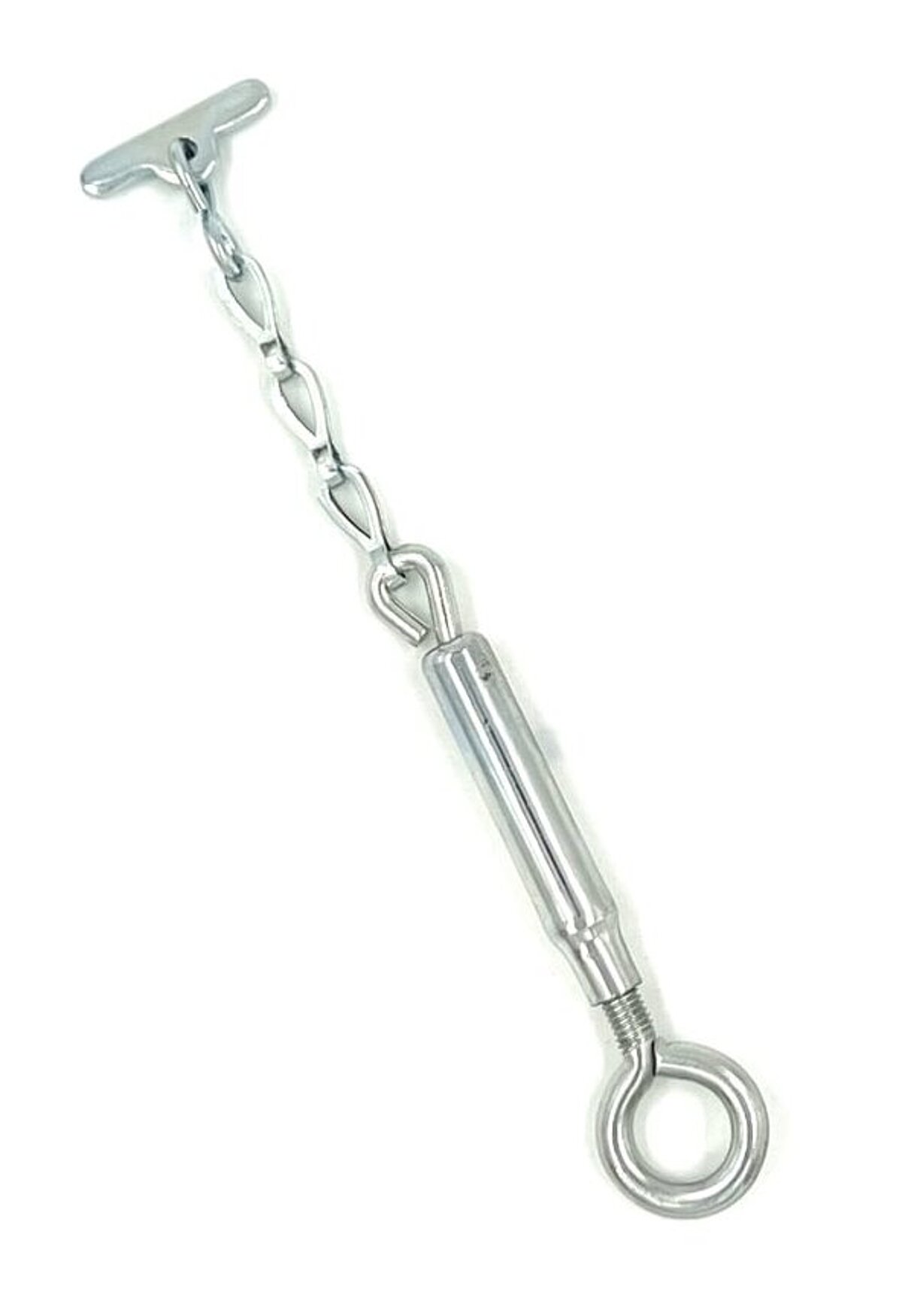

Turnbuckles for Tennis nets, Material C15, electro galvanized

Tennisnetzspanner
Art.-No. Weight per 100 pcs kg
69999 11,0

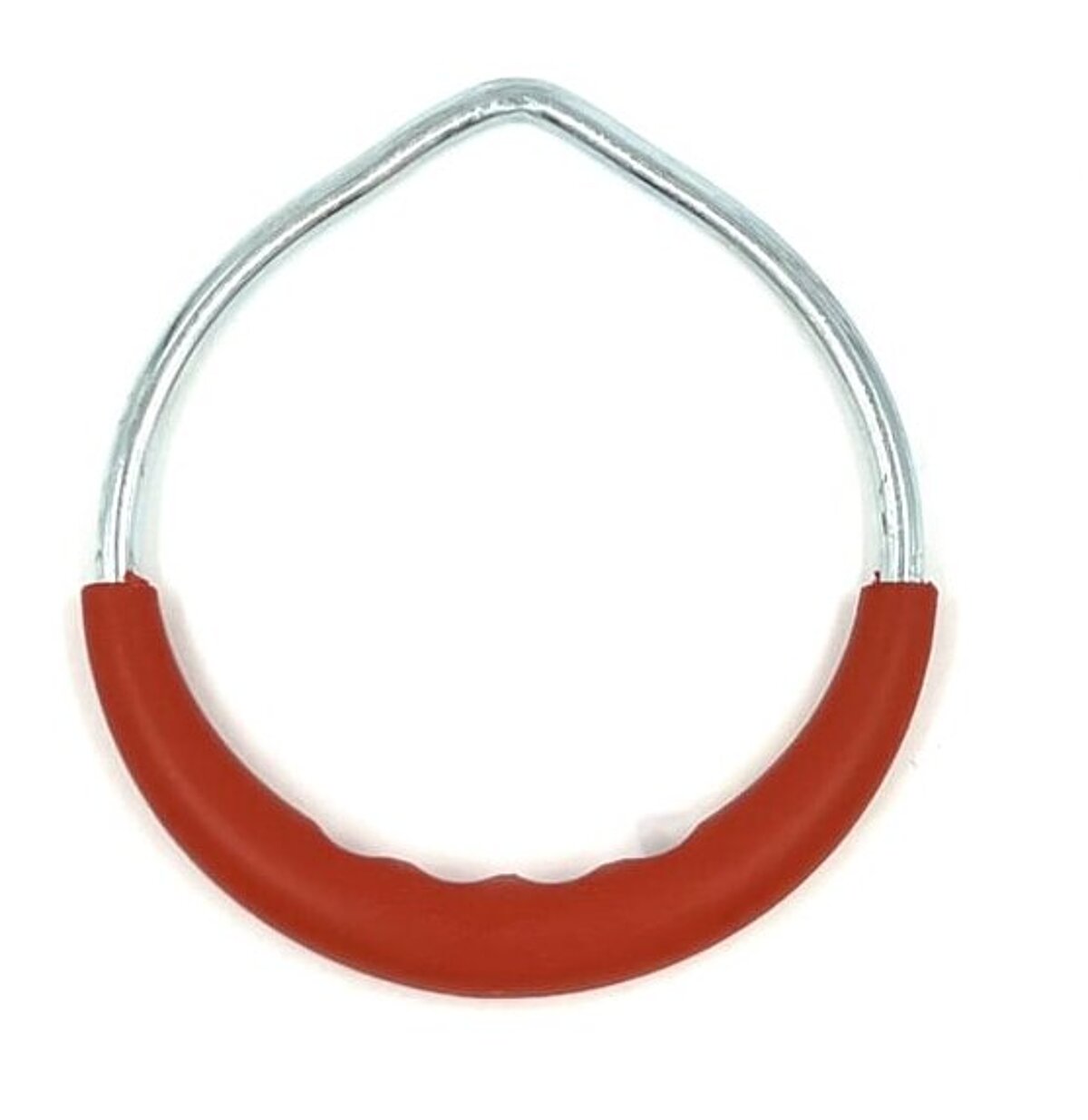

Gymnastic Rings with plastic grip, Material C15, electro galvanized

Ösenringe
Art.-No. Material-Ø mm Total length mm Weight per 100 pcs kg
65007 7 120 plastic grip 16.0
65010 10 145 plastic grip 30.0

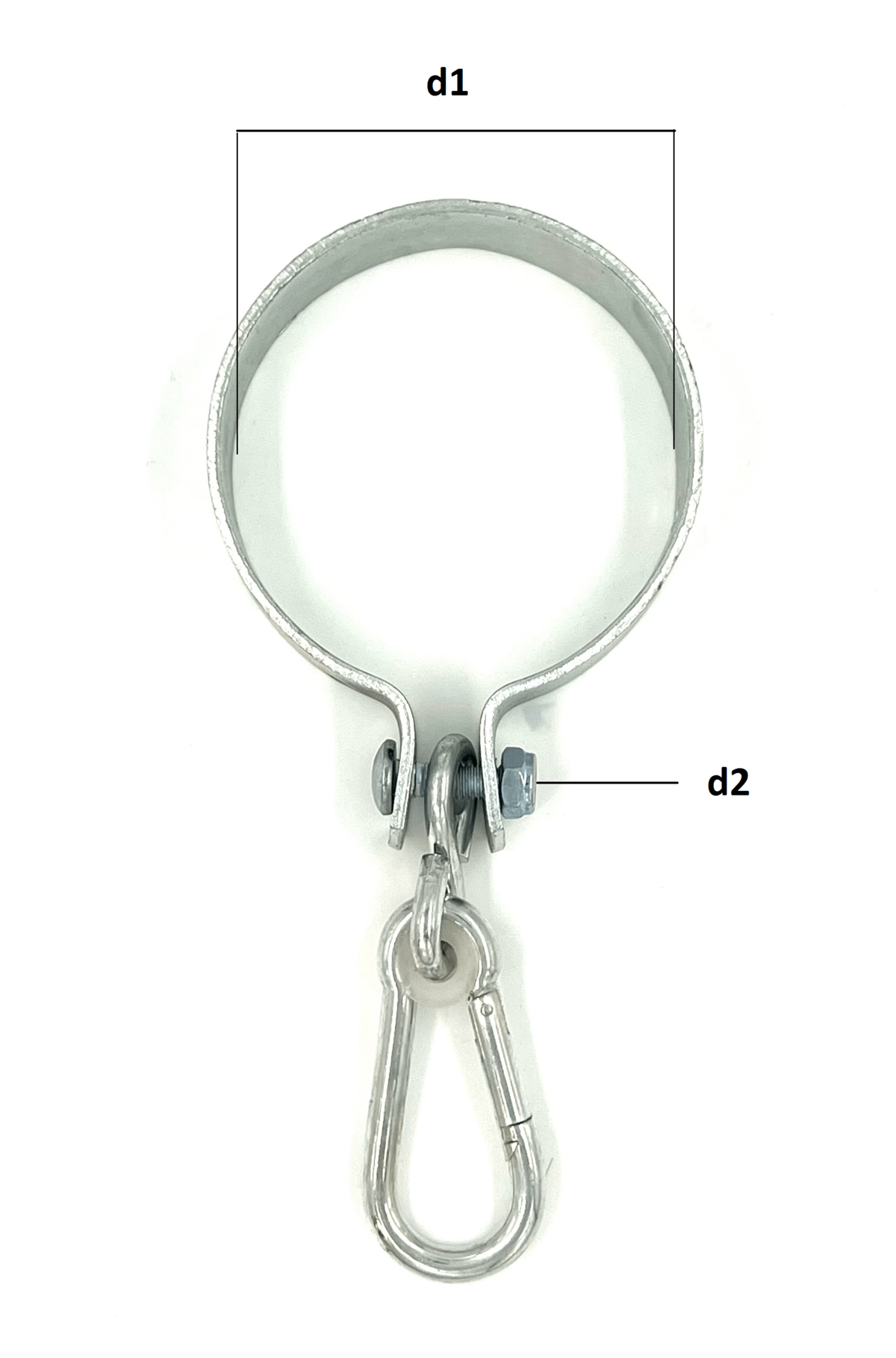

Collar Hooks with Snap Hook 10 x 100 mm electro galvanized

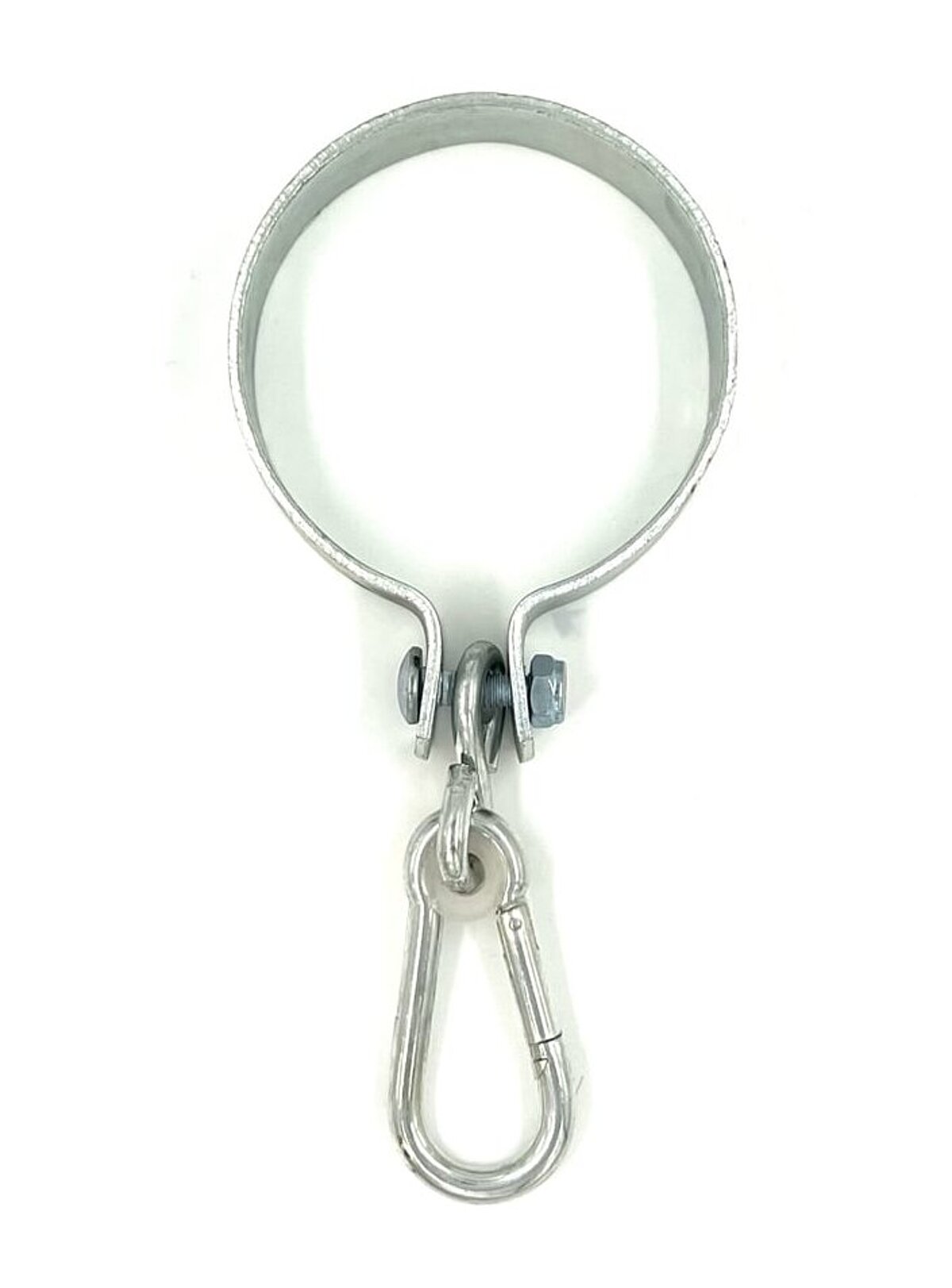

Manschettenhaken
Manschettenhaken
Art.-No. Size (d1) mm Material mm Screw (d2) Galvanizing Weight per 100 pcs kg
66023 26 2 M 10 blue 32
66051 50 3 M 10 blue 37
66082 80 4 M 10 blue 40
66102 100 4 M 10 blue 43
66121 120 4 M 10 blue 49

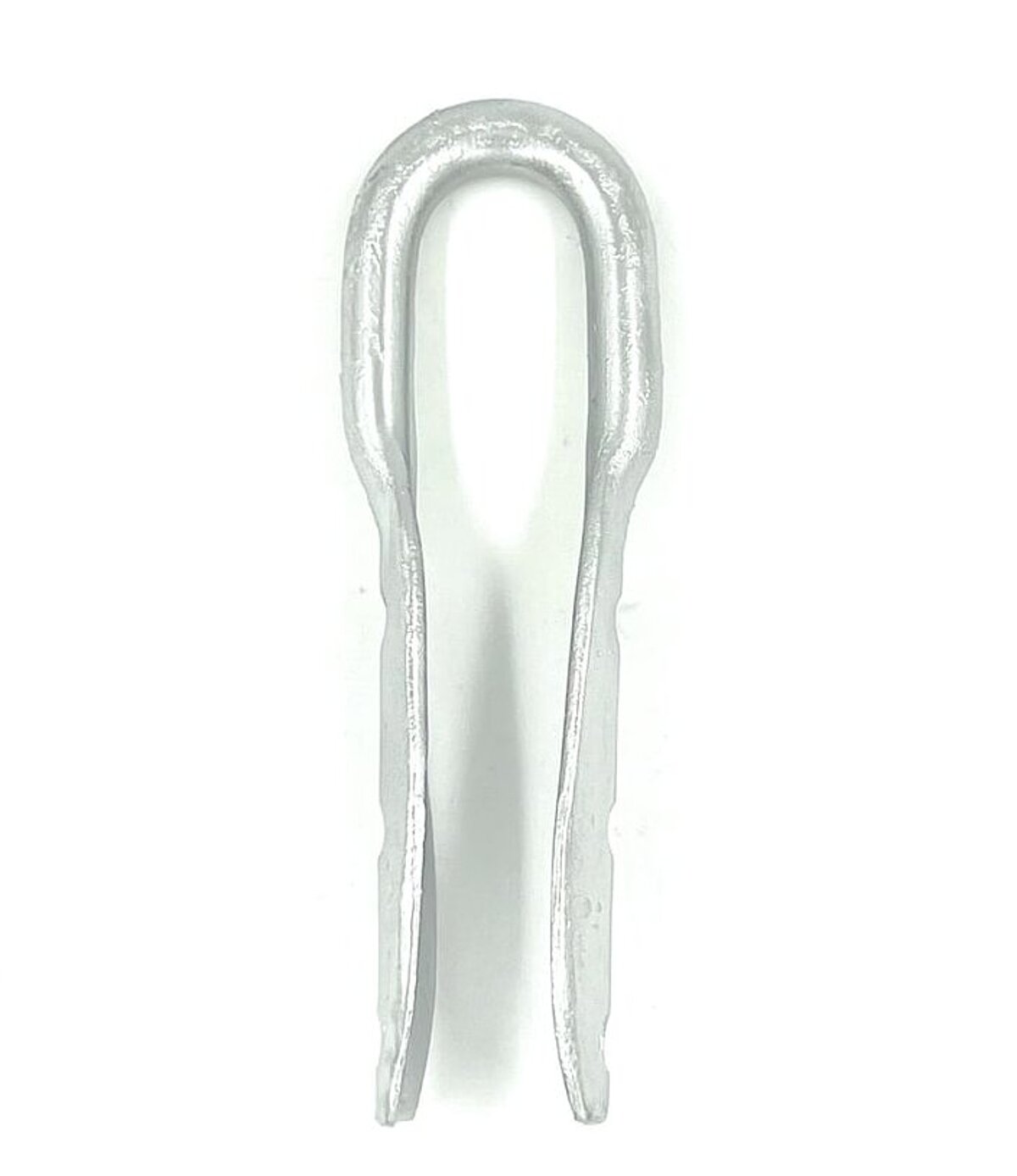

Rope Holder, hot dipped galvanized

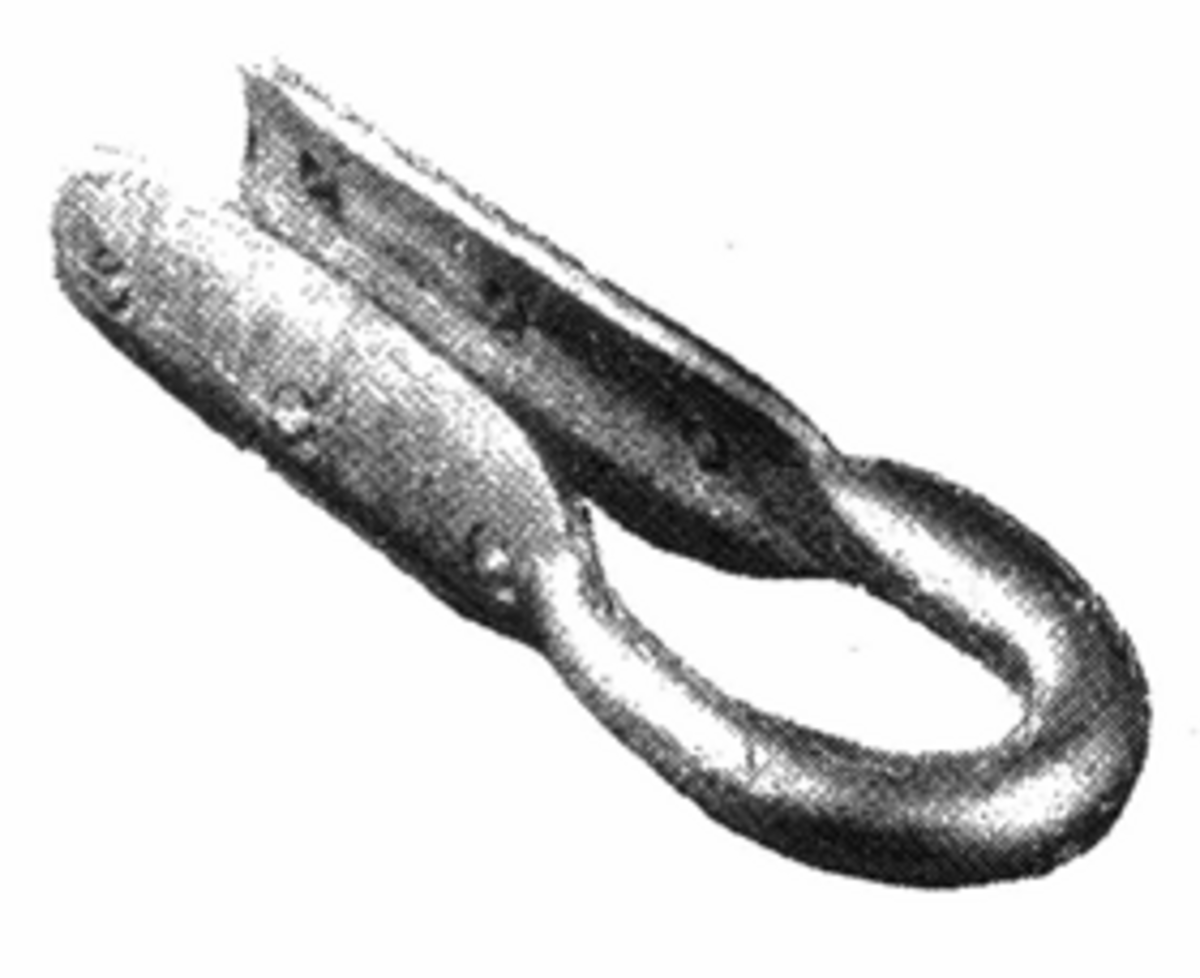

Seilhalter
Seilhalter

More sizes on request.

Art.-No. For Ropes Weight per 100 pcs kg
69030 for 30 mm Rope 49
69033 for 33 mm Rope 50
69035 for 35 mm Rope 51

Swing Hooks with plastic rolls and Snap Hook (10x100mm), electro galvanized

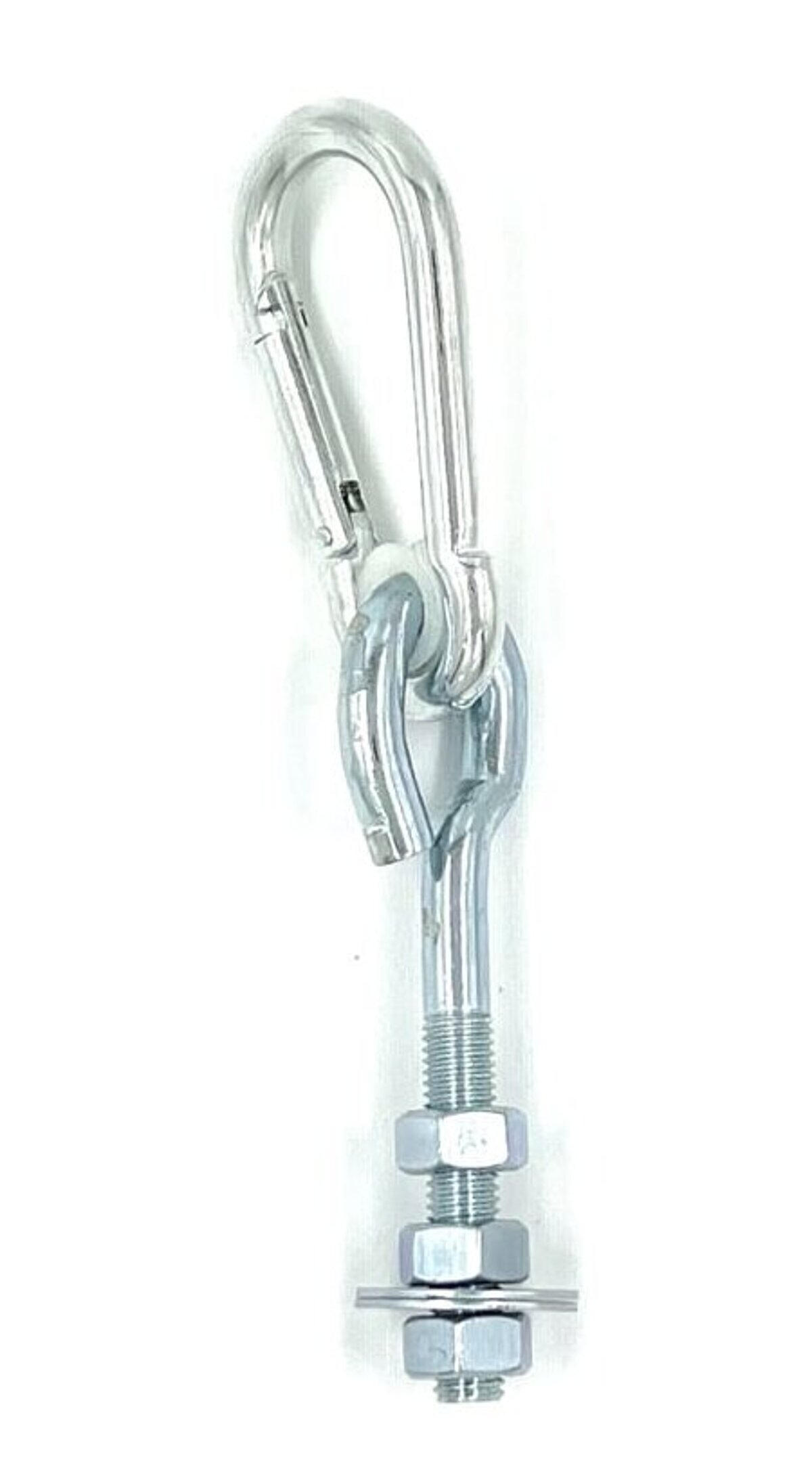

Schaukelhaken Mit Kunststoffbuchse Und Karabinerhaken Eisengewinde

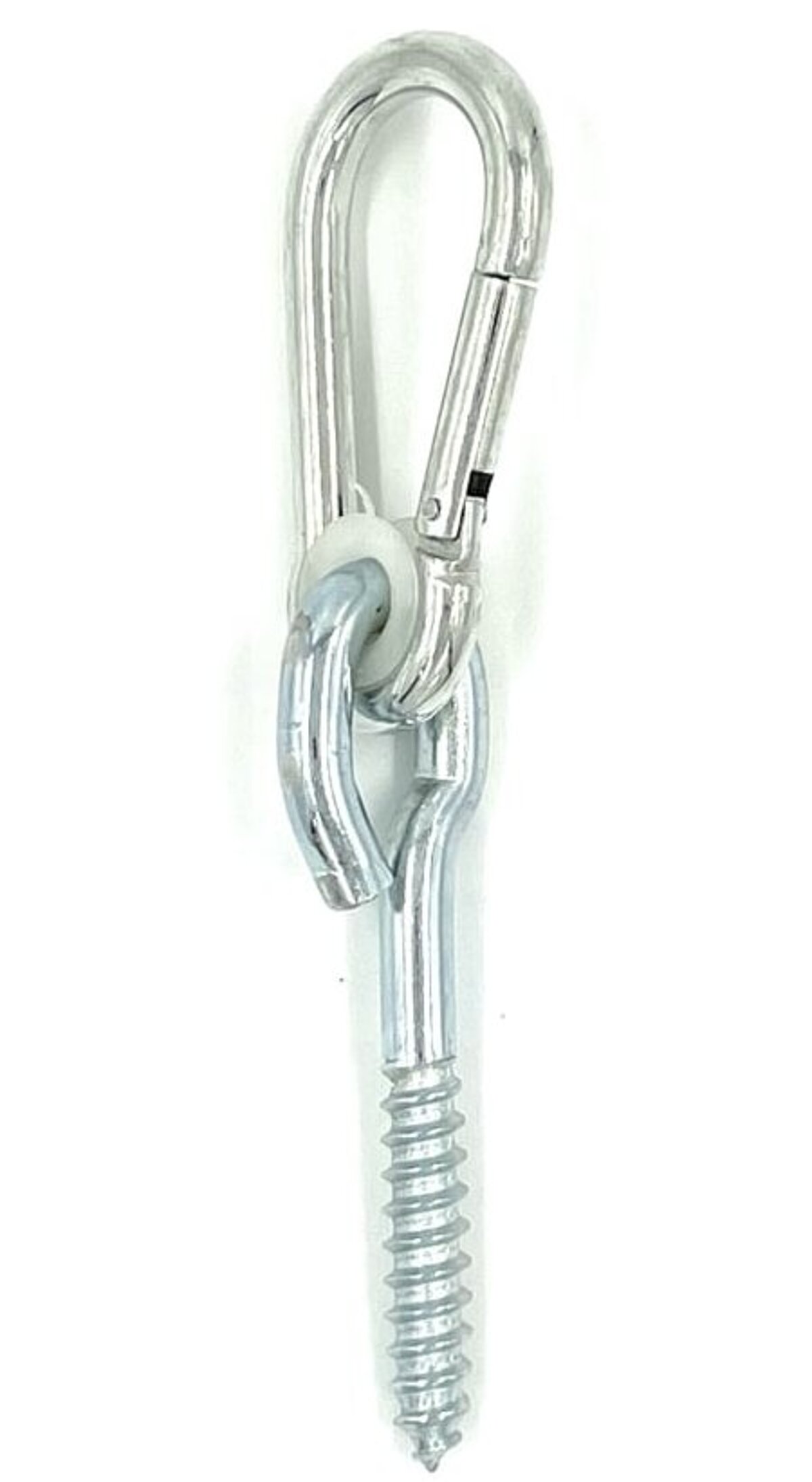

Schaukelhaken Mit Kunststoffbuchse Und Karabinerhaken Holzgewinde
Art.-No. Size Thread Weight per 100 pcs kg
67104 10,6 x 180 mm Wooden Thread 17
67102 10,6 x 180 mm Metric Thread M 12 18
67005 10,6 x 250 mm Metric Thread M 12 21

Swing Hooks with plastic rolls and open Hook (8 mm), electro galvanized

Schaukelhaken Mit Kunststoffbuchse Und Offenem Haken Eisengewinde
Schaukelhaken Mit Kunststoffbuchse Und Offenem Haken Holzgewinde
Art.-No. Size Thread Weight per 100 pcs kg
67004 10,6 x 180 mm Wooden Thread 15
67002 10,6 x 180 mm Metric Thread M 12 15
67003 10,6 x 250 mm Metric Thread M 12 19

Screw Hooks, electro galvanized

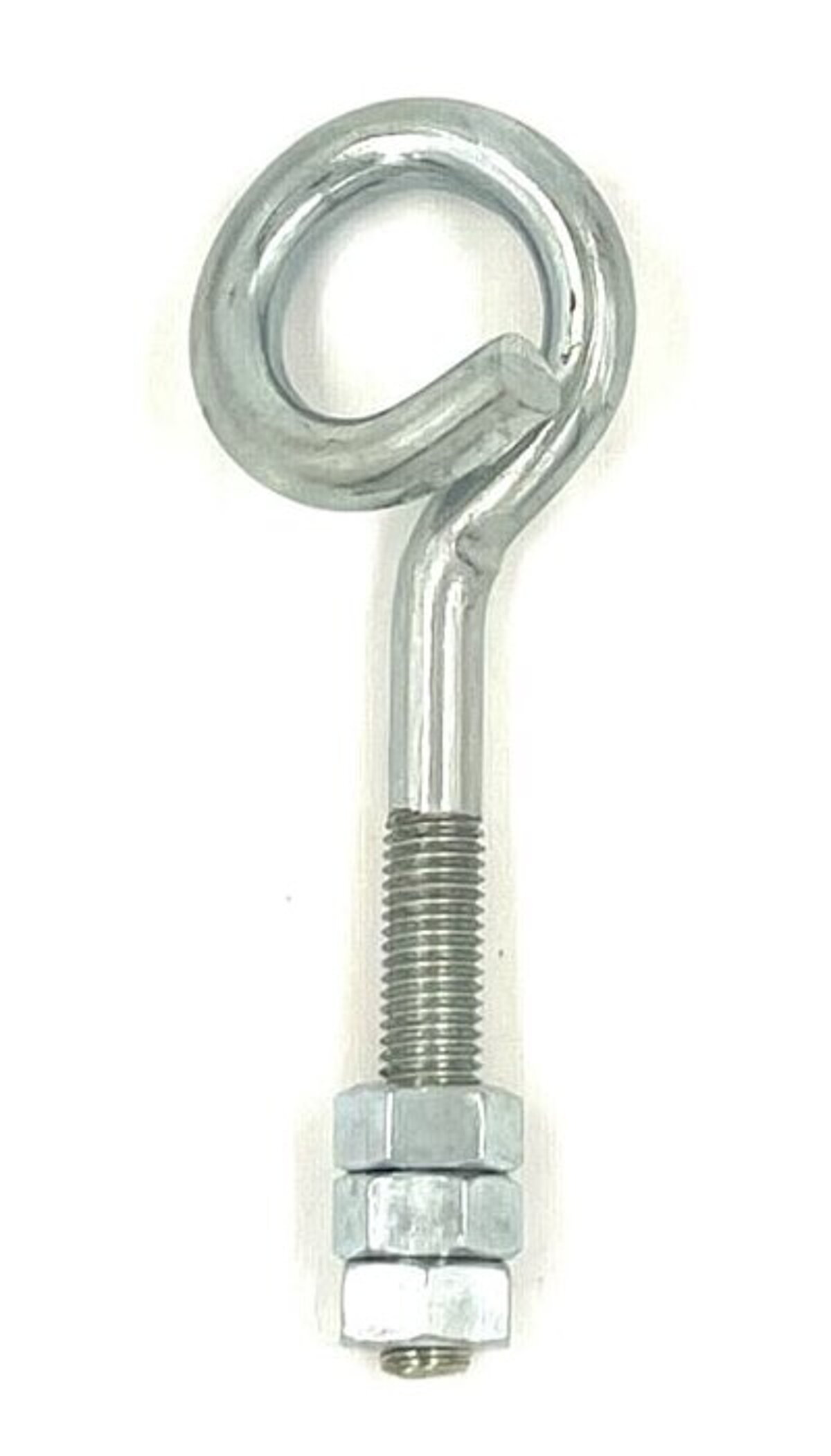

Deckenhaken Eisengewinde

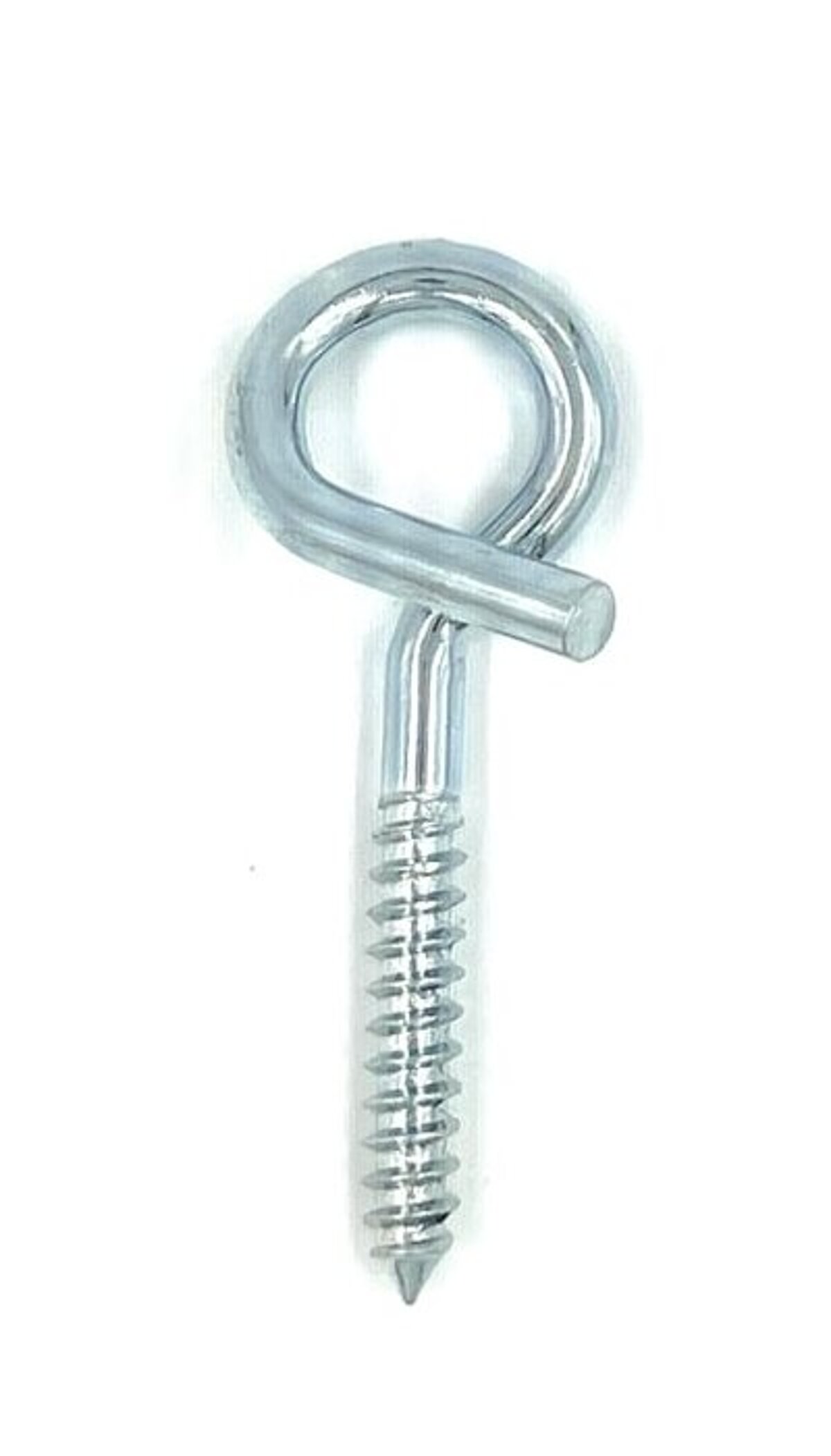

Deckenhaken Holzgewinde
Art.-No. Size Thread Weight per 100 pcs kg
67146 10,6 x 145 mm Wooden Thread 30
67201 12,6 x 200 mm Wooden Thread 35
67145 10,6 x 145 mm Metric Thread M 12 30
67150 12,6 x 150 mm Metric Thread M 14 31
67200 12,6 x 200 mm Metric Thread M 14 35

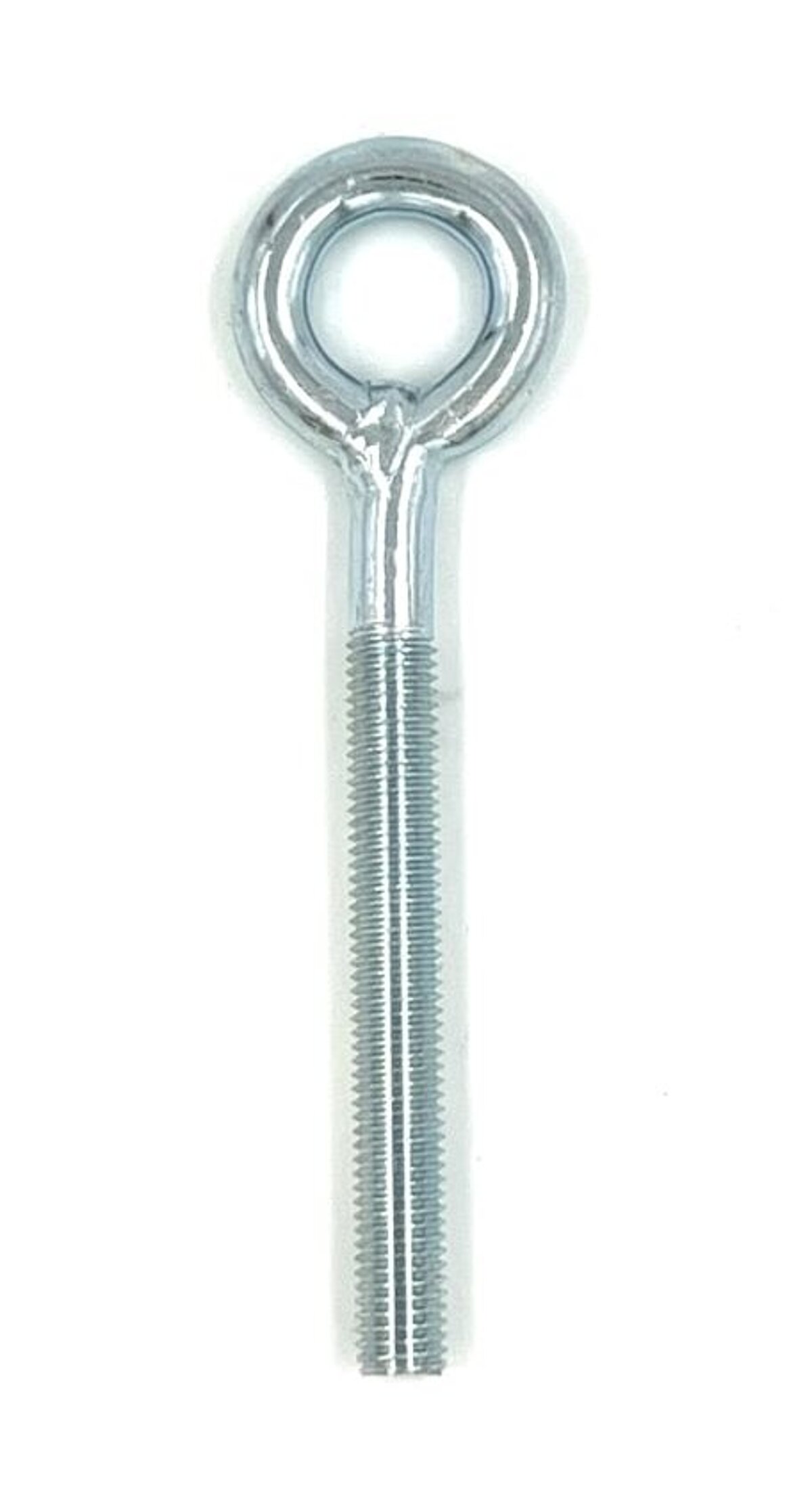

Eye-Bolts

Augenschrauben

Eye welded, electro galvanized
More sizes on request.

Art.-No. Thread inside width of the eye-Ø mm Shaft mm Length of thread mm
71802 M 10/ M 12 18 25 - 75 on request
71808 M 10/ M 12 18 80 - 120 on request
71812 M 10/ M 12 18 125 - 200 on request
71820 M 10/ M 12 18 205 - 300 on request
72002 M 10/ M 12 20 25 - 75 on request
72008 M 10/ M 12 20 80 - 120 on request
72012 M 10/ M 12 20 125 - 200 on request
72020 M 10/ M 12 20 205 - 300 on request
72202 M 10/ M 12 22 25 - 75 on request
72208 M 10/ M 12 22 80 - 120 on request
72212 M 10/ M 12 22 125 - 200 on request
72220 M 10/ M 12 22 205 - 300 on request
72502 M 10/ M 12 25 25 - 75 on request
72508 M 10/ M 12 25 80 - 120 on request
72512 M 10/ M 12 25 125 - 200 on request
72520 M 10/ M 12 25 205 - 300 on request
73002 M 10/ M 12 30 25 - 75 on request
73008 M 10/ M 12 30 80 - 120 on request
73012 M 10/ M 12 30 125 - 200 on request
73020 M 10/ M 12 30 205 - 300 on request
73302 M 10/ M 12 33 25 - 75 on request
73308 M 10/ M 12 33 80 - 120 on request
73312 M 10/ M 12 33 125 - 200 on request
73320 M 10/ M 12 33 205 - 300 on request
73502 M 10/ M 12 35 25 - 75 on request
73508 M 10/ M 12 35 80 - 120 on request
73512 M 10/ M 12 35 125 - 200 on request
73525 M 10/ M 12 35 205 - 300 on request

Sizes and weights can be changed! We reserve the right to change technical details!
